LM2596 DC-DC 3A Adjustable Step-down Module LM2596 Constant Current Voltage Regulator High Efficiency Low Heat
$2.52
$0.00
Taxes and shipping calculated at checkout where applicable.
Available
SPECIFICATIONSApplication: ComputerBrand Name: NoEnName_NullChoice: yesCondition: NewHigh-concerned chemical: noneOrigin: Mainland ChinaType: Moduleis_customized: YesLM2596 DC-DC 3A Adjustable Step-down Module LM2596 Constant Current Voltage Regulator High Efficiency Low HeatProduct parameters:1. Module nature: Non...
Shipping
View shipping eligibility and timing at checkout.
Returns
See the FiivePlus return policy for eligibility and terms.
Secure checkout
Your checkout is processed through Shopify's secure payment experience.
$2.52
LM2596 DC-DC 3A Adjustable Step-d...
Everything you need to know
Product details
Explore the product details, highlights and specifications before you buy.
01
Product details
A closer look at this product.
SPECIFICATIONS
Application: Computer
Brand Name: NoEnName_Null
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Type: Module
is_customized: Yes
LM2596 DC-DC 3A Adjustable Step-down Module LM2596 Constant Current Voltage Regulator High Efficiency Low Heat
Product parameters:
1. Module nature: Non isolated voltage reducing module
2. Rectification method: asynchronous rectification
3. Input voltage: DC7V-35V
4. Output voltage: DC1.25V-30V
5. Output current: maximum 3A (adjustable)
6. Conversion efficiency: 92% (highest)
instructions：

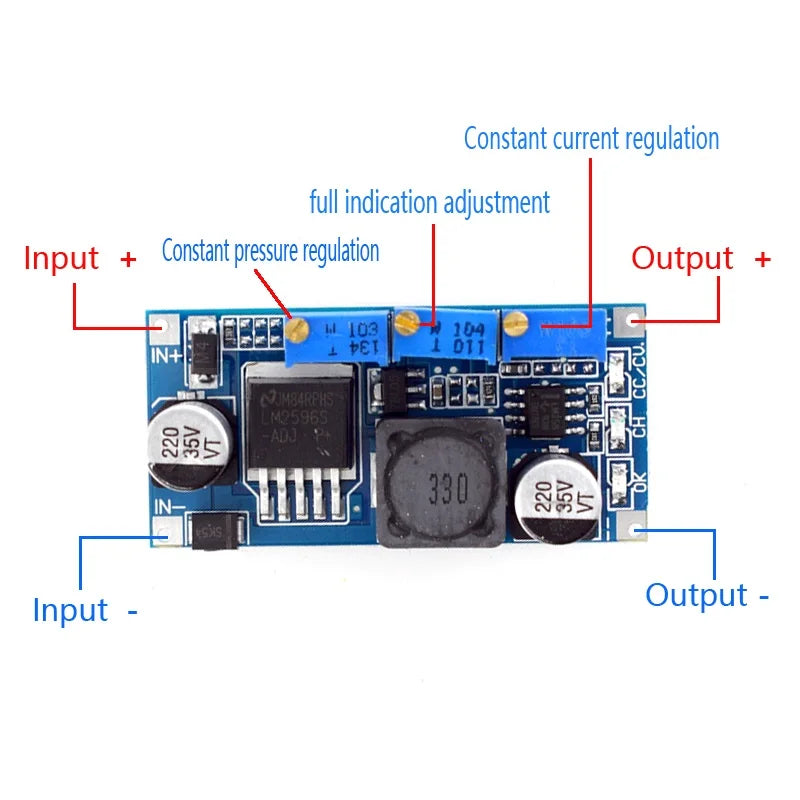

This module is an adjustable voltage reduction module that can change the output voltage by adjusting the voltage potentiometer. The input and output voltage difference is 2V. The IN - (input negative), IN+(input positive), OUT - (output negative), and OUT+(output positive) marked on the module must be connected correctly, otherwise it may cause damage to the module.
1. Battery charging usage method:
① Determine the float charging voltage and charging current of the rechargeable battery you need, as well as the input voltage of the module;
② Adjust the constant voltage potentiometer to adjust the output voltage to around 5V;
③ Measure the output short-circuit current with a multimeter in 10A current mode, and adjust the constant current potentiometer to achieve the predetermined charging current value
④ The default shipment of the charging to lamp power supply is 0.1 times the charging current (constant current value). If adjustment is needed, please adjust the lamp current potentiometer; (Usually does not require adjustment)
⑤ Adjust the constant voltage potentiometer to make the output voltage reach the float charging voltage;
⑥ Connect the battery and try charging.
(Steps 1, 2, 3, 4, and 5 are to connect the module input to the power supply and the output to no load without connecting the battery)
2. Usage of LED constant current driver:
① Determine the operating current and maximum operating voltage required to drive the LED;
② Adjust the constant voltage potentiometer to adjust the output voltage to around 5V.
③ Measure the output short-circuit current with a multimeter in 10A current mode, and adjust the constant current potentiometer to achieve the predetermined LED operating current;
④ Adjust the constant voltage potentiometer to make the output voltage reach the working voltage of the LED;
⑤ Connect the LED and test the machine.
(Steps 1, 2, 3, and 4 are to connect the module input to the power supply, and the output is unloaded without connecting the LED light)
